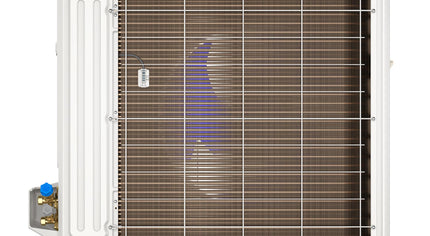

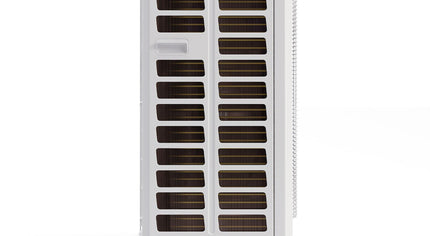

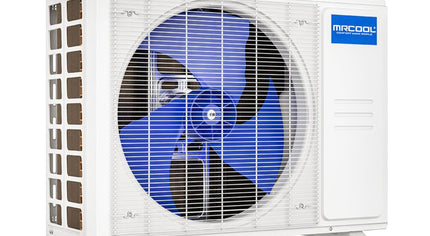

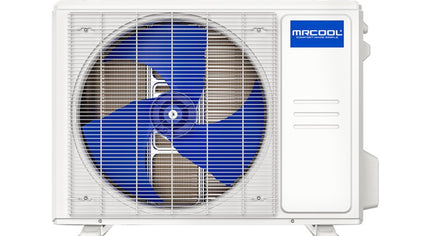

MrCool® 24K DIY 5th Gen Single-Zone Mini-Split Condenser
$2,364.00
- Description
- Feature List
- Product Specifications
- Brochure
- Install Manual
- Specs
- Remote Manual
- Warranty
- Accessory Manual
- AHRI Certs
- Energy Guide Certs
Description
Taking on an HVAC installation yourself might seem daunting, but the 5th Generation MRCOOL® DIY® 24K BTU 22.7 SEER Ductless Heat Pump Single Zone Mini Split Condenser is built specifically for easy, do-it-yourself setup. With no special tools or professional experience needed, this system is perfect for heating and cooling areas between 750-1,000 sq. ft. The pre-charged 25-foot QuickConnect® line set simplifies installation by eliminating the need for vacuuming, while the included DIYPRO® cable adds extra durability, replacing traditional electrical conduit to protect against weather, animals, and yardwork hazards. With multiple control options, managing your comfort is effortless. Adjust settings using the included remote, the SmartHVAC app on Apple or Android devices, or go hands-free with voice control via Amazon Alexa and Google Assistant. For homes near the coast, the Gold Fin Condenser enhances corrosion resistance, ensuring lasting performance. This system is packed with features to maximize efficiency and convenience. The Timer function helps regulate energy use, while Auto mode maintains your preferred temperature with no extra effort. If power is lost, the unit automatically restores previous settings. Plus, the anti-mildew function helps prevent moisture buildup inside the air handler. Engineered for long-term reliability, the 5th Generation MRCOOL® DIY® Mini Split comes with an industry-leading warranty, including a limited lifetime warranty, 7-year compressor coverage, and a 5-year parts warranty. Combining user-friendly installation with advanced technology, this system delivers lasting comfort with ease.
Feature List
- NEEP ccASHP Listed
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
Product Specifications
|
SEER2 |
22.7 |
|
EER2 |
12.7 |
|
HSPF2-4 |
9.5 |
|
HSPF2-5 |
7.1 |
|
TONNAGE |
2 |
|
COOLING CAPACITY (BTU) |
23000 |
|
HEATING CAPACITY (BTU) |
23000 |
|
VOLTAGE (V) |
208/230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
25 |
|
MIN CIRCUIT AMPACITY (A) |
24 |
|
COLOR |
White |
|
ZONE CAPACITY |
1 |
|
REFRIGERANT TYPE |
R-454B |
|
REFRIGERANT VOLUME (OZ) |
67.37 |
|
DECIBEL RATING (DBA) |
58.5 |
|
INVERTER |
DC |
|
LINE SET LENGTH |
25 |
|
MAX LINESET LENGTH (FT) |
164 |
|
LIQUID LINE SIZE |
3/8 |
|
SUCTION LINE SIZE |
5/8 |
|
COMPRESSOR MOTOR TYPE |
Rotary |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
No |
|
FAN ONLY OPTION |
Yes |
|
QUIET MODE |
Yes |
|
AUTO COOL |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
UL LISTED |
Yes |
|
ETL LISTED |
Yes |
|
ENERGY STAR CERTIFIED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Extended Limited Lifetime* |
|
BASE PARTS WARRANTY |
5 |
|
BASE COMPRESSOR WARRANTY |
7 |
|
HAS BATTERIES |
Yes |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
16.14 |
|
NET HEIGHT (IN) |
31.89 |
|
NET WIDTH (IN) |
37.24 |
|
NET WEIGHT (LBS) |
122.8 |
|
GROSS DEPTH (IN) |
19.88 |
|
GROSS HEIGHT (IN) |
37.01 |
|
GROSS WIDTH (IN) |
42.91 |
|
GROSS WEIGHT (LBS) |
155.64 |
