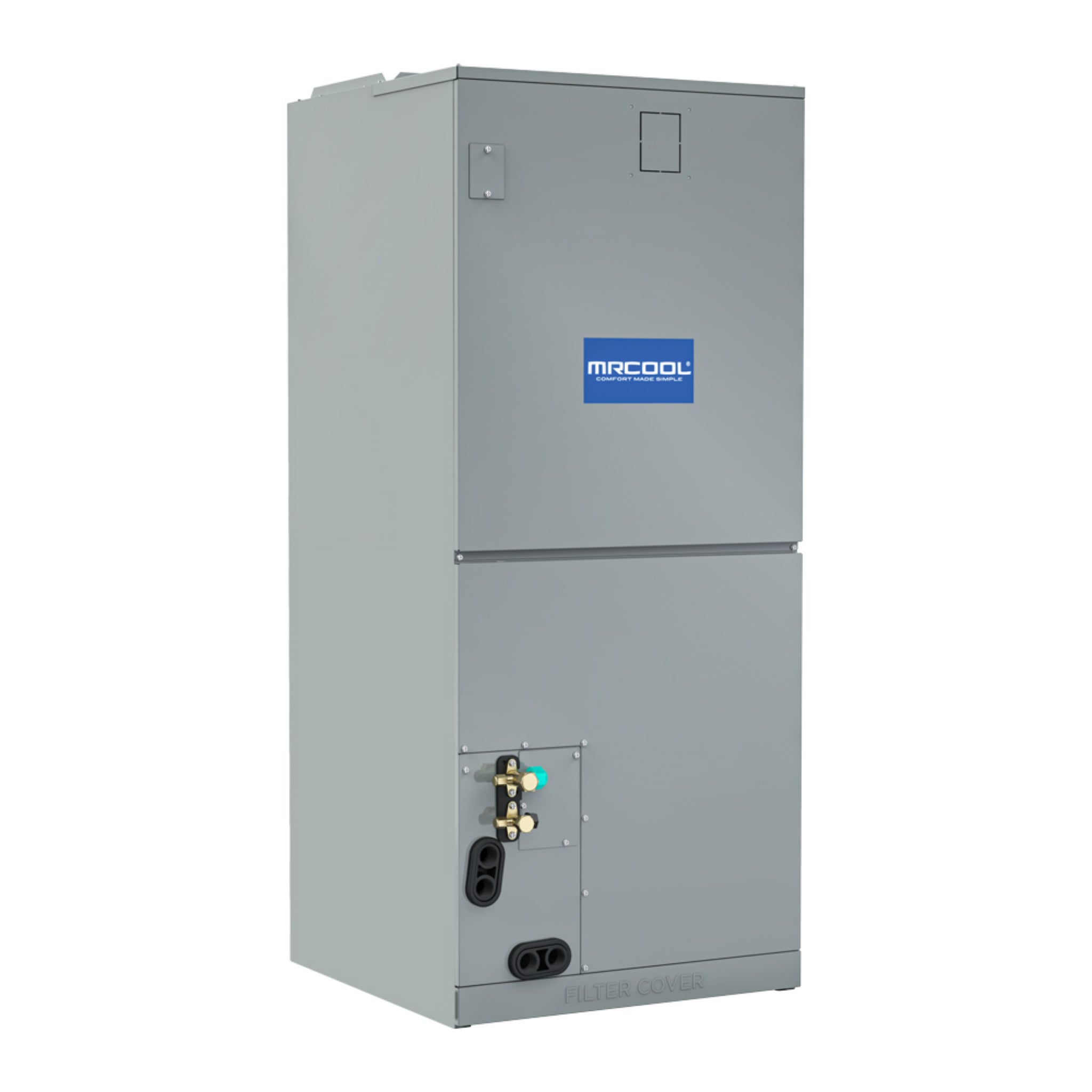

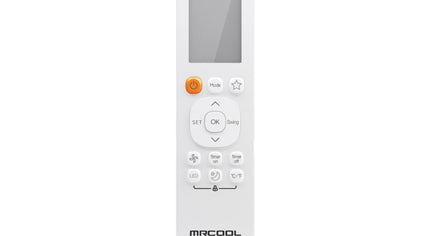

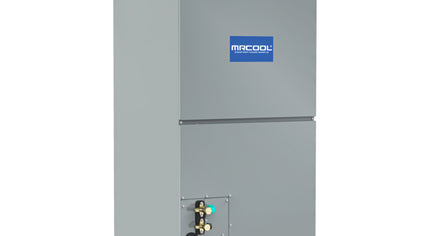

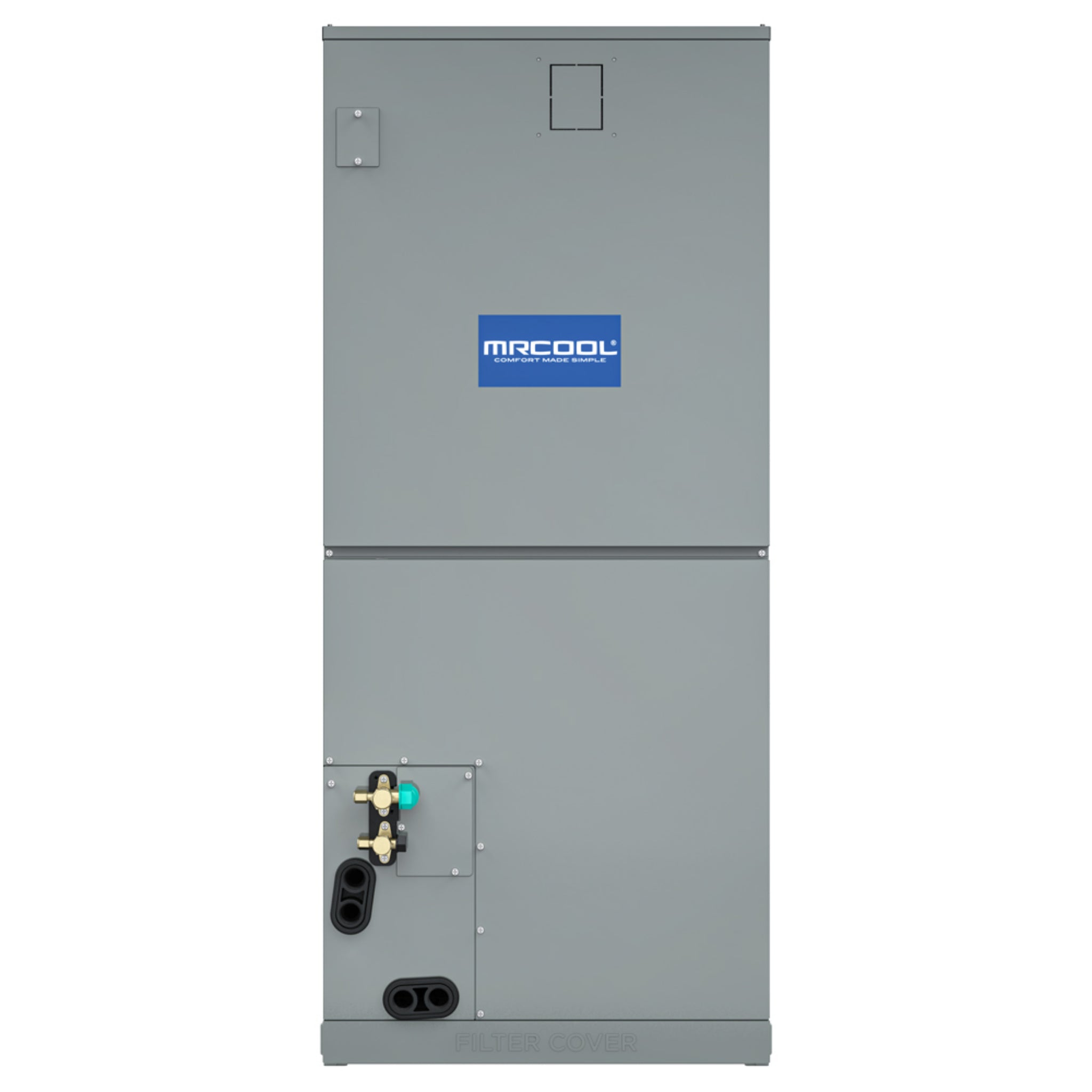

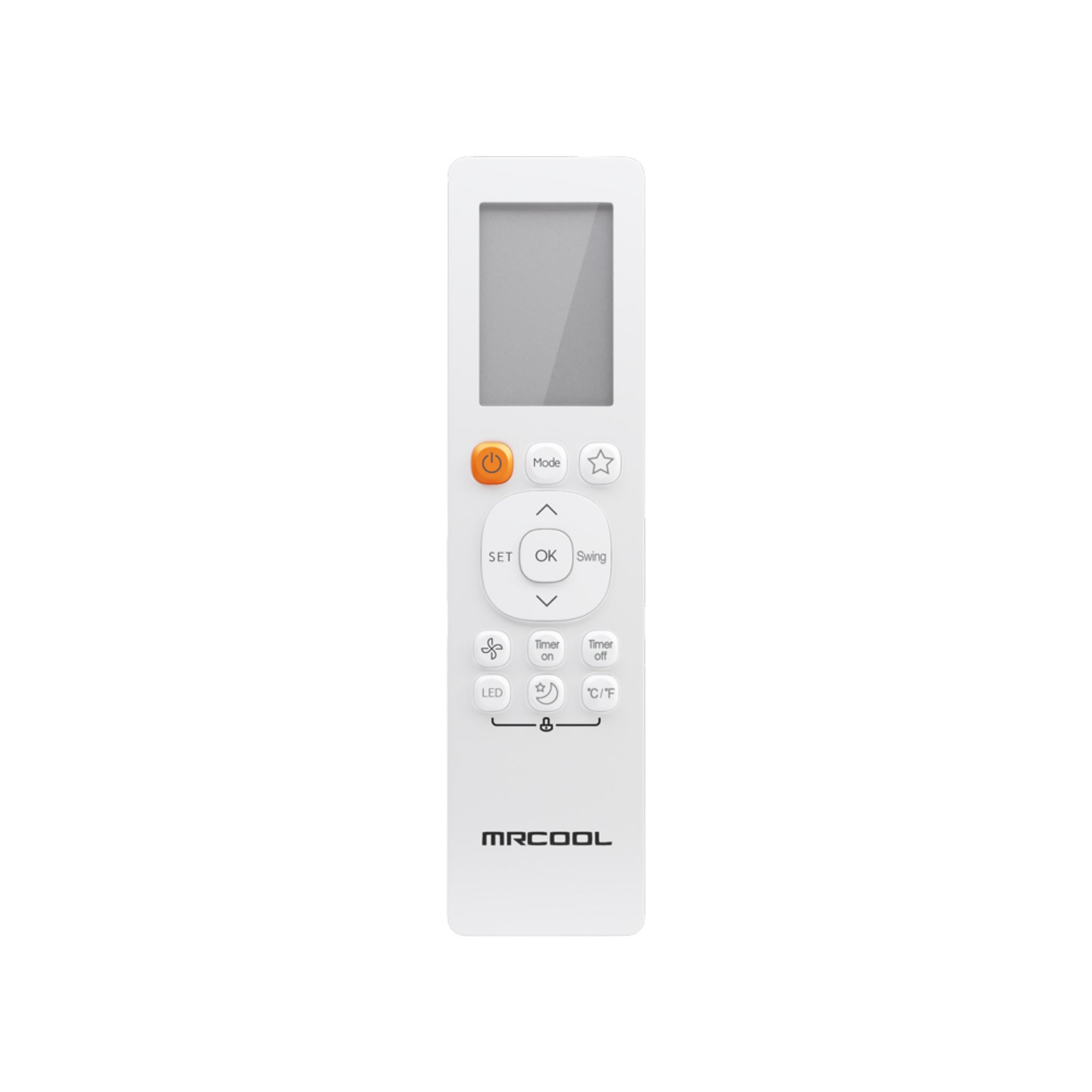

Regardless of external weather conditions, the 48K MRCOOL® Hyper Heat Central Ducted Air Handler is an exceptional choice for your home's heating and cooling needs. Its efficiency results in utility expense savings, and it boasts an impressive SEER2 rating of up to 15.6 and an HSPF2-4 rating of up to 9.4 due to its superior heating capacity. Constructed with painted galvanized steel, the high quality unit features a side-discharge design, slide-out blower, self-diagnostics panel, and removable filters for easy maintenance. An HVAC technician can effortlessly install the unit, which is designed to work with the optional MRCOOL® No-Vac® Quick Connect® Line Set. This line set comes pre-charged with eco-friendly R410-A refrigerant, eliminating the need for vacuuming or flare welding and providing kink resistance. It allows for flexible installation options as it can be configured in various ways. Additionally, a wired thermostat, wireless remote, and an optional heat kit are available if needed. Should any operational concerns arise, the air handler is backed by a reassuring 10-year warranty for parts and labor, giving you peace of mind. Moreover, there's no need to register for the included labor warranty.

  • Enhanced Heating Capacity
  • Includes features such as timer mode, auto cool mode, fan only mode, and more
  • Wired Thermostat Included (.78 in x 4.72 in x 4.72in)

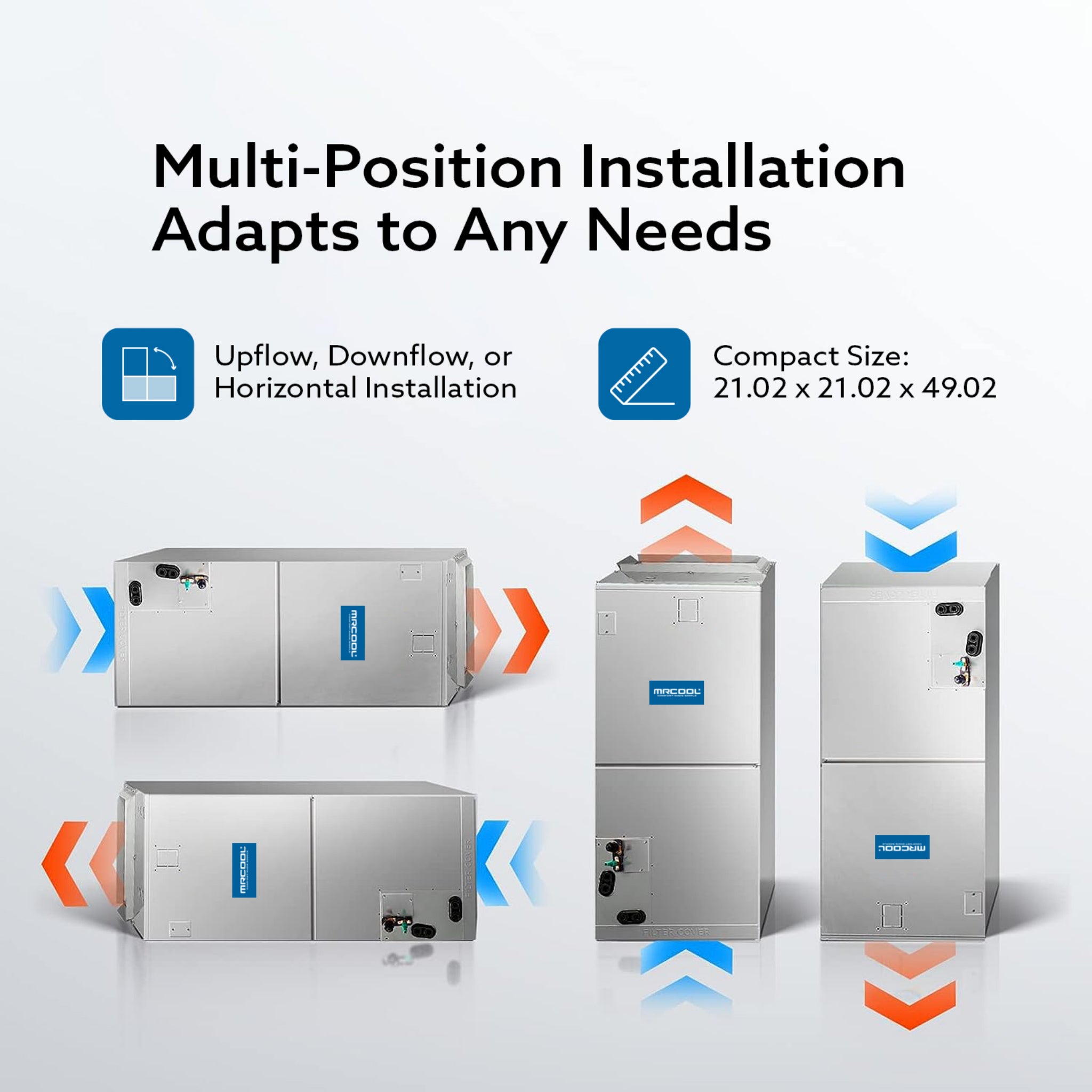

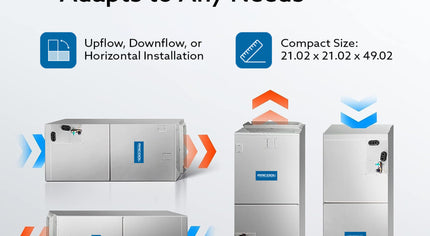

  • Multi-Position Installation
  • Variable Speed
  • Optional Heat Kit
  • Compact, Side Discharge Design
  • R-410A environmentally friendly refrigerant
  • Follow Me™ Function
  • Easy-Access Removable Filter

CFM

1470.59/1282.35/1094.12/905.88

COOLING CAPACITY (BTU)

47000

HEATING CAPACITY (BTU)

50000

VOLTAGE (V)

208-230

PHASE

1

CYCLE

60

MAX FUSE BREAKER (A)

15

MIN CIRCUIT AMPACITY (A)

7.5

REFRIGERANT TYPE

R-410A

DECIBEL RATING (DBA)

47

DECIBEL RATING LOW (DBA)

43.5

DECIBEL RATING HIGH (DBA)

50

NUMBER OF SPEEDS

4

INVERTER

DC

MAX LINESET LENGTH (FT)

213.25

LIQUID LINE SIZE

3/8

SUCTION LINE SIZE

3/4

AUXILIARY HEATER INCLUDED

No

AUXILIARY HEATER AVAILABLE

Yes

AUXILIARY HEATER SIZES

8kW, 10kW, 15kW, 20kW

UL LISTED

Yes

AHRI CERTIFIED

Yes

BASE WARRANTY

10yrs Parts and Labor

PROPOSITION 65 WARNING

Yes

NET DEPTH (IN)

21.02

NET HEIGHT (IN)

49.02

NET WIDTH (IN)

21.02

NET WEIGHT (LBS)

132.50

GROSS DEPTH (IN)

26.57

GROSS HEIGHT (IN)

52.56

GROSS WIDTH (IN)

24.41

GROSS WEIGHT (LBS)

157
