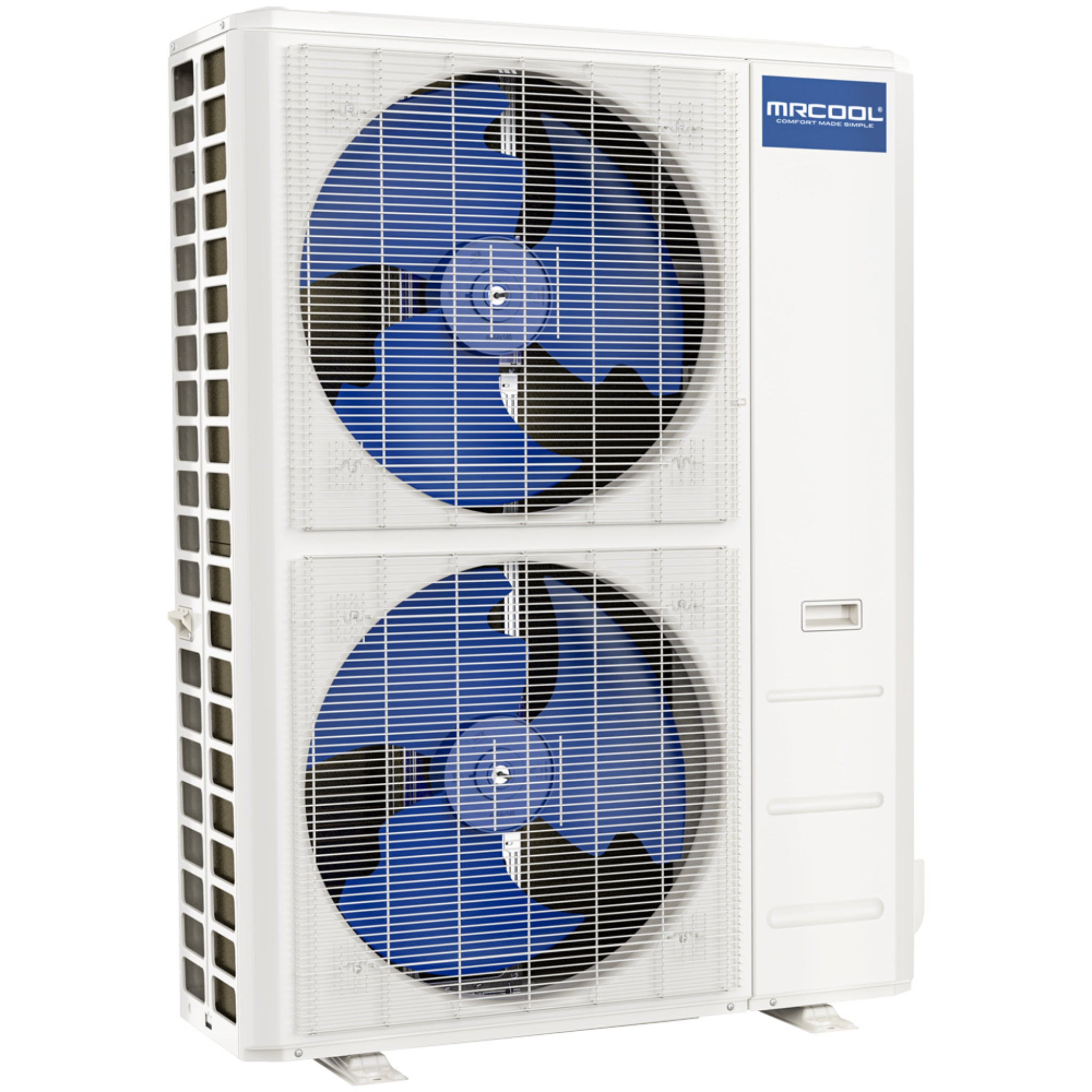

MrCool® 48K Central Ducted Complete Unitary System Condenser
$2,715.00
24/7 Free US Shipping
Any Questions? Text or Call @ (651) 370-8711
MRCOOL 48k BTU 17.3 SEER Condenser
SEER |
17.3 |
EER |
9.3 |
HSPF-4 |
10 |
HSPF-5 |
8.2 |
COOLING CAPACITY (BTU) |
47000 |
HEATING CAPACITY (BTU) |
55000 |
VOLTAGE (V) |
208-230 |
PHASE |
1 |
CYCLE |
60 |
MAX FUSE BREAKER (A) |
50 |
MIN CIRCUIT AMPACITY (A) |
34 |
COLOR |
Gray |
RATED LOAD |
2.4 |
ZONE CAPACITY |
1 |
REFRIGERANT TYPE |
R-410A |
REFRIGERANT VOLUME (OZ) |
165.79 |
MIN AMBIENT COOL (F) |
5~122 |
MIN AMBIENT HEAT (F) |
5~75.2 |
LINESET INCLUDED |
No |
LIQUID LINE SIZE |
3/8 |
SUCTION LINE SIZE |
3/4 |
COMPRESSOR MOTOR TYPE |
Rotary |
CONDENSER FAN MOTOR RPM |
850/750/650 |
AUXILIARY HEATER INCLUDED |
No |
AUXILIARY HEATER AVAILABLE |
Yes |
AUXILIARY HEATER SIZES |
8kw,10kw,15kw, 20kw |
ADJUSTABLE THERMOSTAT |
Yes |
FAN ONLY OPTION |
Yes |
SLEEP MODE |
Yes |
AUTO COOL |
Yes |
APP COMPATIBILITY |
No |
REMOTE CONTROL INCLUDED |
Yes |
AHRI CERTIFIED |
Yes |
BASE WARRANTY |
10 years parts and labor |
NET DEPTH (IN) |
16.34 |
NET HEIGHT (IN) |
52.48 |
NET WIDTH (IN) |
37.48 |
NET WEIGHT (LBS) |
217.59 |
GROSS DEPTH (IN) |
19.49 |
GROSS HEIGHT (IN) |
57.48 |
GROSS WIDTH (IN) |
43.11 |
GROSS WEIGHT (LBS) |
249 |
