Description

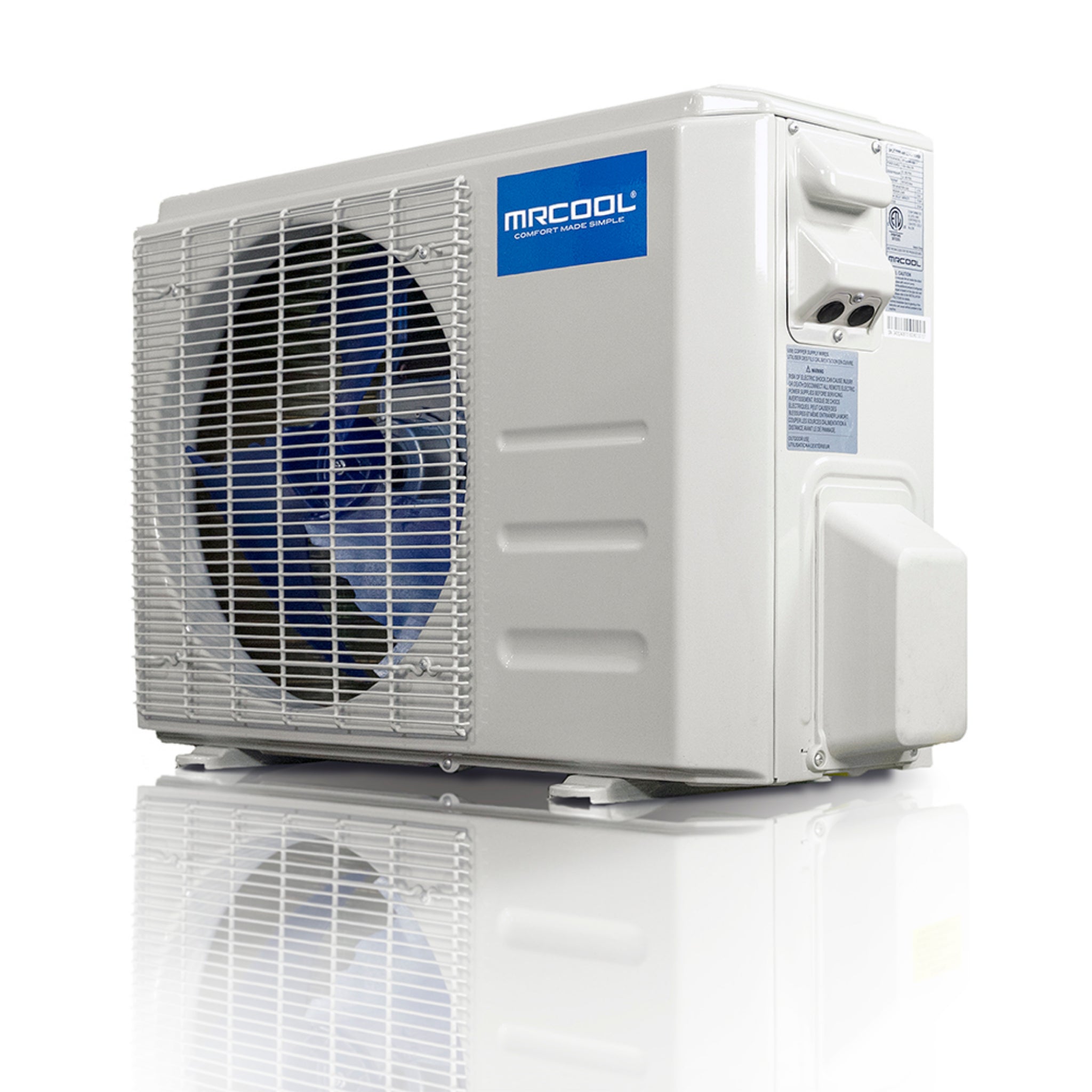

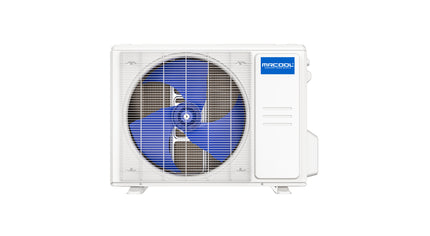

Give yourself an advantage - literally - with our 5th Generation 36k BTU 230V Advantage condenser. This Advantage unit must be installed by an HVAC professional, which will be a relatively fast and inexpensive process, as ductless mini-splits typically have an easier installation than most HVAC units. This 36k BTU unit is perfect if you need to cover a space that is up to and around 1,550 sq. ft. space in efficient, reliable comfort. Covering a large space won’t break the bank, either, because this unit achieves a SEER2 rating of 18 as well as an HSPF2-4 rating of 8.5, meaning you can bring your space to whatever temperature you want without watching your bills skyrocket. A new refrigerant, R-454B, gives this system an edge over its previous generation, which used R-410A. This means that the 5th Generation Advantage is a much more environmentally sound and energy efficient option because R-454B has a GWP (global warming potential) that is 80% lower than the refrigerant used in the previous generation, which makes this system a great choice for you and everyone on the planet. It’s an incredibly convenient choice, too, because it includes a Wi-Fi module, which enables control of your system through your phone and Amazon Alexa or Google Home, giving you the ability to control your space’s temperature with just your voice. When this system is installed and registered, you can rely on its 2 year parts warranty and 1 year compressor warranty so you can rest easy with peace of mind. Choose a 5th Generation 36k BTU Advantage for the best home comfort that you’ve always deserved.

Feature List
  • Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
  • Includes features such as timer mode, refrigerant leakage detection, and more
  • Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
  • The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
  • R-454B refrigerant
  • AHRI certified
  • NEEP ccASHP Listed
  • CEE Tier1 - North
Product Specifications

SEER2

18

EER2

9

HSPF2-4

8.5

HSPF2-5

6.8

TONNAGE

3

COOLING CAPACITY (BTU)

36000

HEATING CAPACITY (BTU)

36000

VOLTAGE (V)

208-230

PHASE

1

CYCLE

60

MAX FUSE BREAKER (A)

35

MIN CIRCUIT AMPACITY (A)

33

ZONE CAPACITY

1

REFRIGERANT TYPE

R-454B

REFRIGERANT VOLUME (OZ)

112.88

DECIBEL RATING (DBA)

60.5

INVERTER

DC

MAX LINESET LENGTH (FT)

213.2

LIQUID LINE SIZE

3/8

SUCTION LINE SIZE

5/8

COMPRESSOR MOTOR TYPE

ROTARY

OVERLOAD PROTECTION

Yes

APP COMPATIBILITY

Yes

WORKS WITH IOS

Yes

WORKS WITH ANDROID

Yes

UL LISTED

Yes

CSA LISTED

Yes

ETL LISTED

Yes

ENERGY STAR CERTIFIED

No

AHRI CERTIFIED

Yes

REGISTERED WARRANTY

Extended Limited Lifetime*

BASE PARTS WARRANTY

1 Year

BASE COMPRESSOR WARRANTY

2 Years

HAS BATTERIES

Yes

CONTAINS CHEMICALS

Yes

CONTAINS COMPRESSED GAS

Yes

PROPOSITION 65 WARNING

Yes

NET DEPTH (IN)

16.14

NET HEIGHT (IN)

31.89

NET WIDTH (IN)

37.24

NET WEIGHT (LBS)

150.35

GROSS DEPTH (IN)

19.68

GROSS HEIGHT (IN)

34.84

GROSS WIDTH (IN)

42.91

GROSS WEIGHT (LBS)

160.27

Brochure
Install Manual
Specs
Remote Manual
Warranty
Accessory Manual
AHRI Certs
Energy Guide Certs
