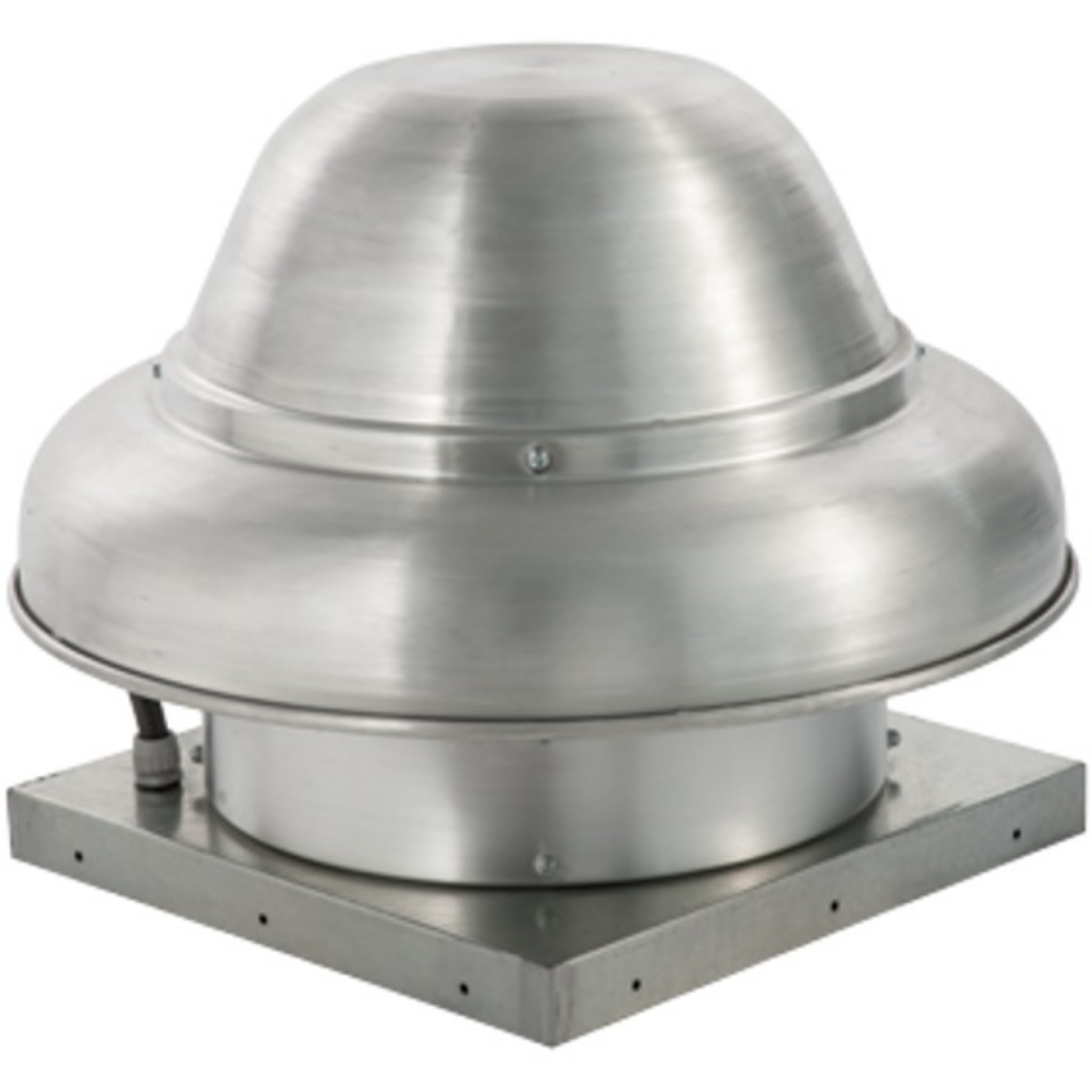

FloAire 2100 CFM Centrifugal Downblast Exhaust Fan
$575.99
- Description
- Specifications
- DR50H Options
- Product Manual
- Dimensions
- Exploded Views
- Using Fan Curves
Description
Please note all orders are custom made to order. Product lead times range between 4-6 weeks.
Centrifugal Downblast UL705 Exhaust Fan with speed control. Roof or Wall Mount. Fan handles 2100 CFM @ -0.000" wc ESP. Exhaust Motor: 0.500 HP, 1 Phs, 115 V, 60 Hz, 8.4 FLA, ODP (Open Drip Proof)
DR50H High Speed Direct Drive Centrifugal Downblast Exhaust Fan with speed control (speed control included for single phase only), birdscreen, disconnect switch and 13-3/4" wheel
Exhaust Fan handles 2100 CFM @ -0.000" wc ESP, Fan runs at 1396 RPM.
Exhaust Motor: 0.500 HP, 1 Phs, 115 V, 60 Hz, 8.4 FLA, ODP (Open Drip Proof)
Specifications
-
CFM Range:
Speed controllable, up to 2400 CFM
-
Fan/Motor RPM Range:
1100 - 1670 RPM
DR50H Options
General Fan Option
- Wall Mount Construction for Fan
Product Manual
Dimensions
Exploded Views
Using Fan Curves
